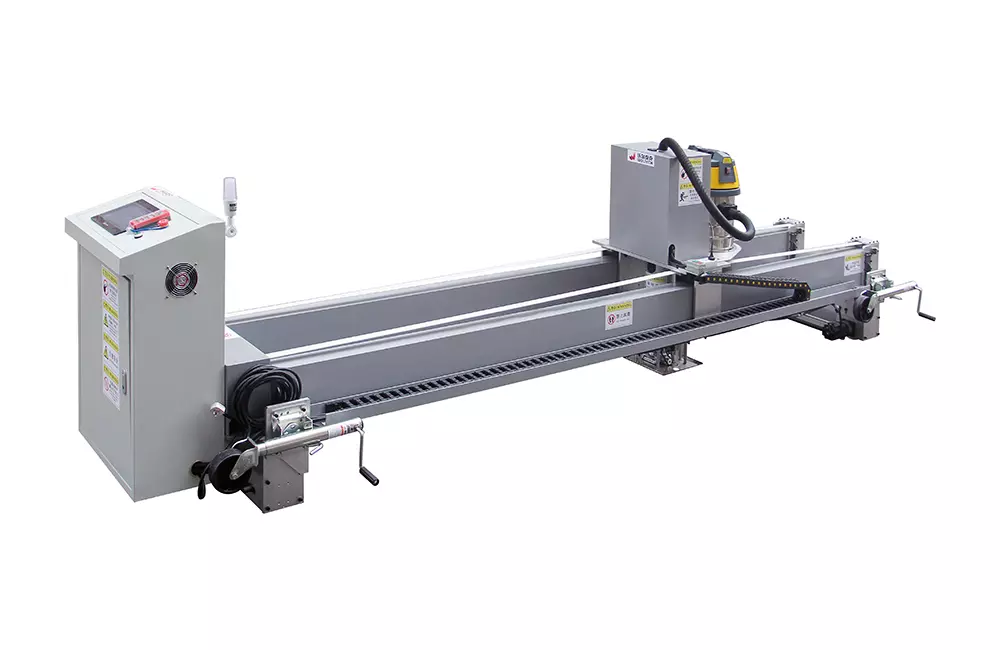

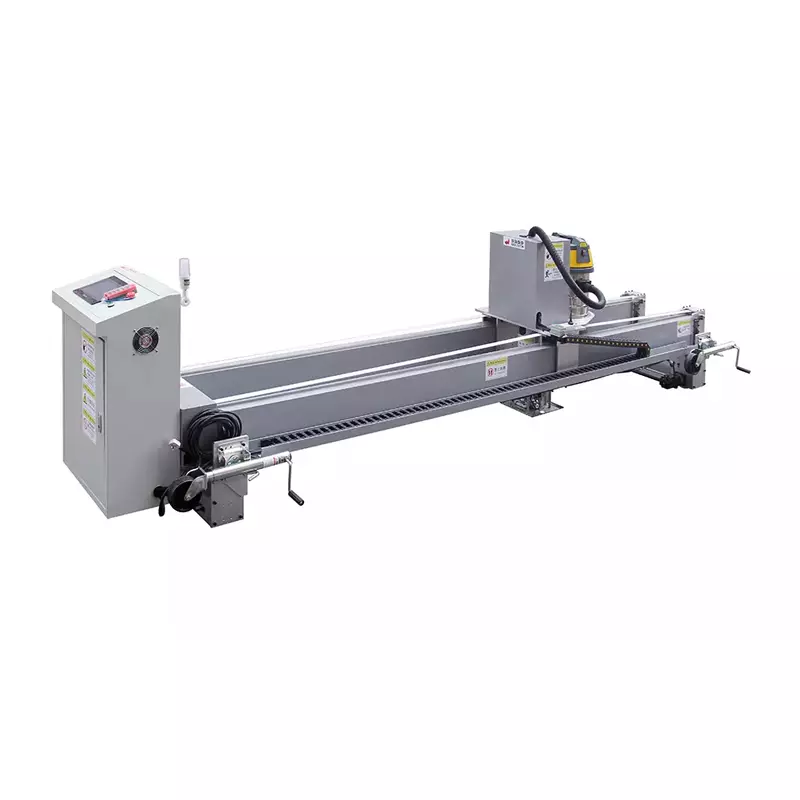

WT-CP-6500 Carpet Shearing Machine
Brand: WOLTECH
MOQ: 1 Pieces
Delivery time: 23 Day
Product Details
HARDWARE PARAMETERS
| Model | WT-CP-6500/5500/4500 | Remarks |
| Total length of the fuselage | 6400mm | |
| Processing length | 5100mm | |
| X-axis servo | 1X0.75KW | 3000 RPM/min |
| Y-axis servo | 2X0.75KW | The dual private server motors can turn around 360° in place |
| Z-axis servo | 1X0.75KW | 3000 RPM/min |
| A Rotation axis | 1X0.75KW | 3000 RPM/min |
| PLC | Ethercet bus PLC | |

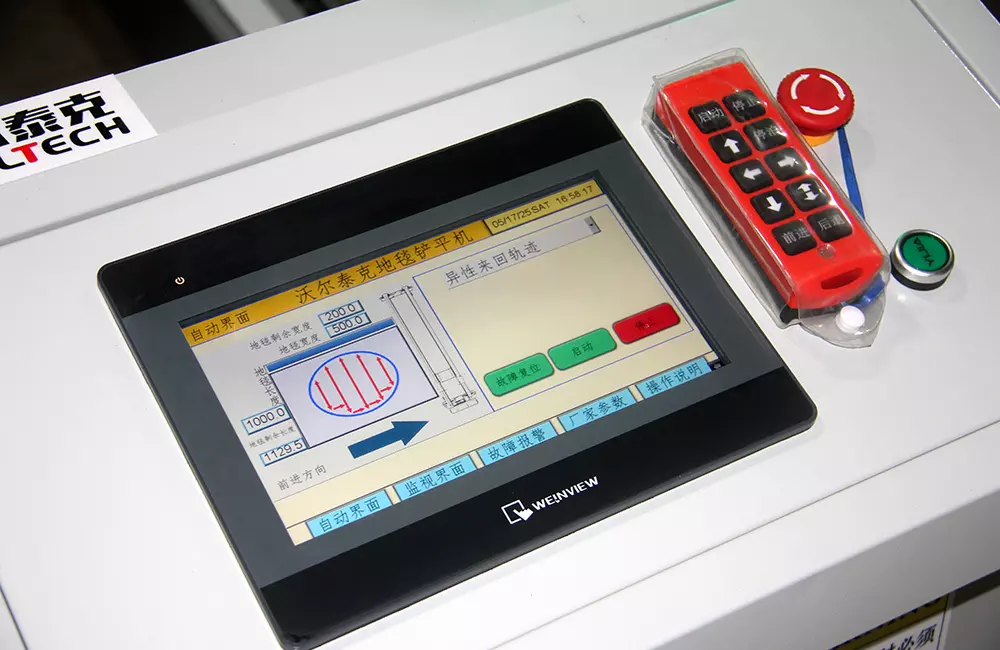

| Touch screen | Weiluntong Multi-point 7-inch touch screen | |
| Vacuum cleaner | 1.5KW 30L | |
| Scraper | 3 inches/6 inches | Choose one of the two |
| Voltage | 220V50Hz | |
| Power | 3.2KW |
IFUNCTIONAL PARAMETERS
| Model | WT-CP-6500/5500/4500 | Remarks |
| Abnormal alarm | Servo and limit alarm | Red light alarm |
| Dynamic adjustment | The height direction is automatically adjusted | Compensate for the height difference between the machine head and the carpet |
| Remote control | Wireless remote control | Controllable XYZ |
| Hair removal height | The height range is 1 to 100mm | The height of each hair removal is automatically adjusted |
| Axis status display | The positions of each servo axis are displayed in real time | Touchscreen display |
| Speed | The speed parameter is open | The touch screen can be set by oneself |
| Positioning | Infrared laser | Reference positioning |
| Overall lateral movement | Lifting wheel | Each unit is equipped with four |
| Conventional carpet | Multiple mode options are available to set the length and width for flattening | |
| lrregular-shaped carpet | Adaptive leveling | |
| Scope of use | Large-scale engineering blankets, woven blankets (Akmin, Wilton) | Household fast blanket |
